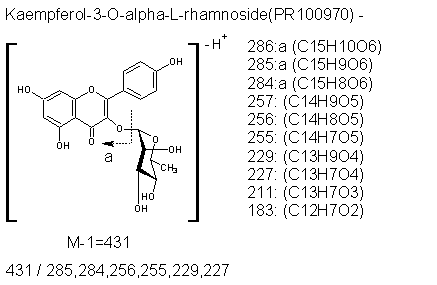

Kaempferol-3-O-alpha-L-rhamnoside

IDs and Links
MassBank	Kaempferol-3-O-alpha-L-rhamnoside
CAS	482-39-3
Keio ID

Top 10 Similar Molecules of Kaempferol-3-O-alpha-L-rhamnoside

Ranking	About scoring
	The similarity score between two molecules is defined as the sum of Shannon entropy of ionic formulas shared by the molecules: $\textstyle - \sum_{p\in shared} \log(\mbox{frequency}(p))$ 代謝物間の類似度スコアは、それらのスペクトルで共有される（アノテートされた）イオン式のシャノン情報量の総和です。

Links

Page list for each fragment

Annotations

Precursor-Product Relationship

About the PP Table (行列表示について)
The matrix is viewed columnwise. The topmost precursor ion in bold face produces the product ions beneath it. Each formula in matrix cells corresponds to the neutral loss. Blackout cells indicate products that cannot be derived, and orange cells indicate a structurally plausible link produced by cleaving a single chemical bond (in cases of ring-opening, two bonds).	行列は列方向に見ます。最上段太字の前駆イオン(precursor ion)が直下の生成イオン群(product ions)になると解釈します。 行列要素に書かれている組成式はニュートラルロスです。黒は前駆イオンから生成しえない関係、オレンジは分子構造における共有結合1本の切断（開環の場合は2本）で生じる関係を意味します。

PR100970n	431 C21H19O10	286 C15H10O6	285 C15H9O6	284 C15H8O6	257 C14H9O5	256 C14H8O5	255 C14H7O5	229 C13H9O4	227 C13H7O4	211 C13H7O3	183 C12H7O2
431 C21H19O10
286 C15H10O6	C6H9O4
285 C15H9O6	C6H10O4	H
284 C15H8O6	C6H11O4	H2	H
257 C14H9O5	C7H10O5	CHO	CO
256 C14H8O5	C7H11O5	CH2O	CHO	CO	H
255 C14H7O5	C7H12O5	CH3O	CH2O	CHO	H2	H
229 C13H9O4	C8H10O6	C2HO2	C2O2		CO
227 C13H7O4	C8H12O6	C2H3O2	C2H2O2	C2HO2	CH2O	CHO	CO	H2
211 C13H7O3	C8H12O7	C2H3O3	C2H2O3	C2HO3	CH2O2	CHO2	CO2	H2O	O
183 C12H7O2	C9H12O8	C3H3O4	C3H2O4	C3HO4	C2H2O3	C2HO3	C2O3	CH2O2	CO2	CO
