L-beta-homomethionine

IDs and Links
MassBank	L-beta-homomethionine
CAS	75946-25-7
Keio ID

Top 10 Similar Molecules of L-beta-homomethionine

[show] Ranking	About scoring
C013+ Score:8.83 H004+ Score:5.02 G051+ Score:5.02 B090+ Score:5.02 A052+ Score:5.02 R016+ Score:5.02 G061+ Score:5.02 A191+ Score:5.02 A138+ Score:5.02 N044+ Score:3.8	The similarity score between two molecules is defined as the sum of Shannon entropy of ionic formulas shared by the molecules: $\textstyle - \sum_{p\in shared} \log(\mbox{frequency}(p))$ 代謝物間の類似度スコアは、それらのスペクトルで共有される（アノテートされた）イオン式のシャノン情報量の総和です。

Links

[show] Page list for each fragment
Pages Related to Peak C5H8NO2:   A138+  A191+  C013+  G061+  R016+  A052+  B090+  G051+  H004+   Pages Related to Peak C4H8N:   A032+  A039+  A110+  C013+  G037+  G117+  I008+  L007+  M067+  O003+  O009+  P003+  P055+  Z003+  A036+  A069+  A103+  A112+  B026+  B040+  D033+  G021+  H003+  H097+  O005+  P046+  P054+  P074+  P105+  T021+  T022+  T122+  N044+

Annotations

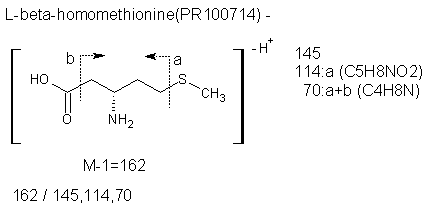

Precursor-Product Relationship

[show] About the PP Table (行列表示について)
The matrix is viewed columnwise. The topmost precursor ion in bold face produces the product ions beneath it. Each formula in matrix cells corresponds to the neutral loss. Blackout cells indicate products that cannot be derived, and orange cells indicate a structurally plausible link produced by cleaving a single chemical bond (in cases of ring-opening, two bonds).	行列は列方向に見ます。最上段太字の前駆イオン(precursor ion)が直下の生成イオン群(product ions)になると解釈します。 行列要素に書かれている組成式はニュートラルロスです。黒は前駆イオンから生成しえない関係、オレンジは分子構造における共有結合1本の切断（開環の場合は2本）で生じる関係を意味します。

[hide] PR100714n	162 C6H12NO2S	114 C5H8NO2	70 C4H8N
162 C6H12NO2S
114 C5H8NO2	CH4S
70 C4H8N	C2H4O2S	CO2
