Puerarin

IDs and Links
MassBank	Puerarin
CAS	3681-99-0
Keio ID

Top 10 Similar Molecules of Puerarin

[show] Ranking	About scoring
D064+ Score:6.64	The similarity score between two molecules is defined as the sum of Shannon entropy of ionic formulas shared by the molecules: $\textstyle - \sum_{p\in shared} \log(\mbox{frequency}(p))$ 代謝物間の類似度スコアは、それらのスペクトルで共有される（アノテートされた）イオン式のシャノン情報量の総和です。

Links

[show] Page list for each fragment
Pages Related to Peak C21H19O9:   D064+

Annotations

Precursor-Product Relationship

[show] About the PP Table (行列表示について)
The matrix is viewed columnwise. The topmost precursor ion in bold face produces the product ions beneath it. Each formula in matrix cells corresponds to the neutral loss. Blackout cells indicate products that cannot be derived, and orange cells indicate a structurally plausible link produced by cleaving a single chemical bond (in cases of ring-opening, two bonds).	行列は列方向に見ます。最上段太字の前駆イオン(precursor ion)が直下の生成イオン群(product ions)になると解釈します。 行列要素に書かれている組成式はニュートラルロスです。黒は前駆イオンから生成しえない関係、オレンジは分子構造における共有結合1本の切断（開環の場合は2本）で生じる関係を意味します。

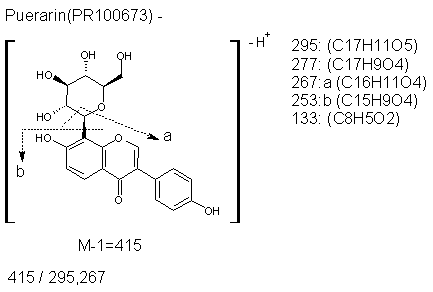

[hide] PR100673n	415 C21H19O9	295 C17H11O5	277 C17H9O4	267 C16H11O4	253 C15H9O4	133 C8H5O2
415 C21H19O9
295 C17H11O5	C4H8O4
277 C17H9O4	C4H10O5	H2O
267 C16H11O4	C5H8O5	CO
253 C15H9O4	C6H10O5	C2H2O	C2	CH2
133 C8H5O2	C13H14O7	C9H6O3	C9H4O2	C8H6O2	C7H4O2
