Quercetin-3,4'-O-di-beta-glucopyranoside

IDs and Links
MassBank	Quercetin-3,4'-O-di-beta-glucopyranoside
CAS	29125-80-2
Keio ID

Top 10 Similar Molecules of Quercetin-3,4'-O-di-beta-glucopyranoside

Ranking	About scoring
	The similarity score between two molecules is defined as the sum of Shannon entropy of ionic formulas shared by the molecules: $\textstyle - \sum_{p\in shared} \log(\mbox{frequency}(p))$ 代謝物間の類似度スコアは、それらのスペクトルで共有される（アノテートされた）イオン式のシャノン情報量の総和です。

Links

Page list for each fragment

Annotations

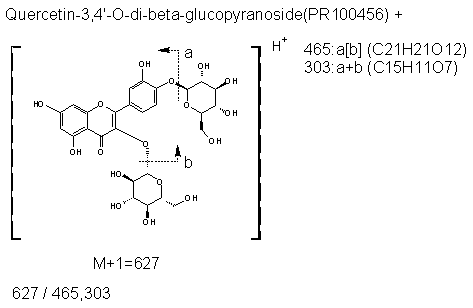

Precursor-Product Relationship

About the PP Table (行列表示について)
The matrix is viewed columnwise. The topmost precursor ion in bold face produces the product ions beneath it. Each formula in matrix cells corresponds to the neutral loss. Blackout cells indicate products that cannot be derived, and orange cells indicate a structurally plausible link produced by cleaving a single chemical bond (in cases of ring-opening, two bonds).	行列は列方向に見ます。最上段太字の前駆イオン(precursor ion)が直下の生成イオン群(product ions)になると解釈します。 行列要素に書かれている組成式はニュートラルロスです。黒は前駆イオンから生成しえない関係、オレンジは分子構造における共有結合1本の切断（開環の場合は2本）で生じる関係を意味します。

PR100456p	627 C27H31O17	465 C21H21O12	303 C15H11O7
627 C27H31O17
465 C21H21O12	C6H10O5
303 C15H11O7	C12H20O10	C6H10O5
