Sulfathiazole

IDs and Links
MassBank	Sulfathiazole
CAS	72-14-0
Keio ID	S079-

Top 10 Similar Molecules of Sulfathiazole

Ranking	About scoring
S016+ Score:9.74 S079+ Score:9.74 A220+ Score:9.74 M104+ Score:6.63 T060+ Score:3.8 T028+ Score:3.8 P190+ Score:3.8 P183+ Score:3.8 P079+ Score:3.8 P056+ Score:3.8	The similarity score between two molecules is defined as the sum of Shannon entropy of ionic formulas shared by the molecules: $\textstyle - \sum_{p\in shared} \log(\mbox{frequency}(p))$ 代謝物間の類似度スコアは、それらのスペクトルで共有される（アノテートされた）イオン式のシャノン情報量の総和です。

Links

Page list for each fragment
Pages Related to Peak C6H6NO2S:   A220+  S079+  S016+   Pages Related to Peak C3H2N2S:   M104+   Pages Related to Peak C6H6N:   A010+  A042+  A043+  A220+  B007+  B072+  D166+  E012+  G101+  I019+  N012+  S079+  U011+  A068+  A114+  B011+  C170+  D032+  D044+  H050+  K004+  M063+  M066+  P035+  P036+  P047+  P056+  P079+  P183+  P190+  S016+  T028+  T060+

Annotations

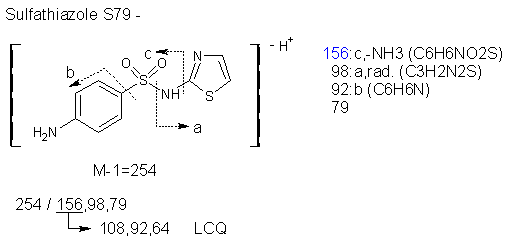

Precursor-Product Relationship

About the PP Table (行列表示について)
The matrix is viewed columnwise. The topmost precursor ion in bold face produces the product ions beneath it. Each formula in matrix cells corresponds to the neutral loss. Blackout cells indicate products that cannot be derived, and orange cells indicate a structurally plausible link produced by cleaving a single chemical bond (in cases of ring-opening, two bonds).	行列は列方向に見ます。最上段太字の前駆イオン(precursor ion)が直下の生成イオン群(product ions)になると解釈します。 行列要素に書かれている組成式はニュートラルロスです。黒は前駆イオンから生成しえない関係、オレンジは分子構造における共有結合1本の切断（開環の場合は2本）で生じる関係を意味します。

KOX00576n	254 C9H8N3O2S2	156 C6H6NO2S	98 C3H2N2S	92 C6H6N
254 C9H8N3O2S2
156 C6H6NO2S	C3H2N2S
98 C3H2N2S	C6H6NO2S
92 C6H6N	C3H2N2O2S2	O2S
