Ojima:KOX00262p

General Index

All Molecules KOX PR PBX COX

Ion Frequency

Prec.-Product

Neutral Loss

Help

Gly

IDs and Links
MassBank	Gly
CAS	56-40-6
Keio ID	G011+

Top 10 Similar Molecules of Gly

[show] Ranking	About scoring
G011+ Score:18.4 D103+ Score:6.23 D037+ Score:5.53 G062+ Score:5.53 G050+ Score:5.53 G037+ Score:5.53	The similarity score between two molecules is defined as the sum of Shannon entropy of ionic formulas shared by the molecules: $\textstyle - \sum_{p\in shared} \log(\mbox{frequency}(p))$ 代謝物間の類似度スコアは、それらのスペクトルで共有される（アノテートされた）イオン式のシャノン情報量の総和です。

Links

[show] Page list for each fragment
Pages Related to Peak C2H6NO2:   G011+  G037+  G050+  G062+  D037+   Pages Related to Peak CH6NO:   G011+   Pages Related to Peak CH4N:   G011+  D103+

Annotations

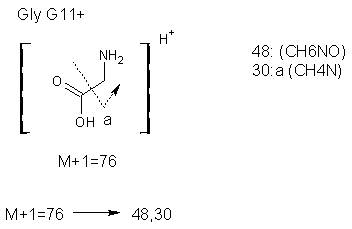

Precursor-Product Relationship

[show] About the PP Table (行列表示について)
The matrix is viewed columnwise. The topmost precursor ion in bold face produces the product ions beneath it. Each formula in matrix cells corresponds to the neutral loss. Blackout cells indicate products that cannot be derived, and orange cells indicate a structurally plausible link produced by cleaving a single chemical bond (in cases of ring-opening, two bonds).	行列は列方向に見ます。最上段太字の前駆イオン(precursor ion)が直下の生成イオン群(product ions)になると解釈します。 行列要素に書かれている組成式はニュートラルロスです。黒は前駆イオンから生成しえない関係、オレンジは分子構造における共有結合1本の切断（開環の場合は2本）で生じる関係を意味します。

[hide] KOX00262p	76 C2H6NO2	48 CH6NO	30 CH4N
76 C2H6NO2
48 CH6NO	CO
30 CH4N	CH2O2	H2O
