Fructose 1,6-diphosphate

IDs and Links
MassBank	Fructose 1,6-diphosphate
CAS	488-69-7
Keio ID	F008+

Top 10 Similar Molecules of Fructose 1,6-diphosphate

[show] Ranking	About scoring
F008+ Score:58.38 T065+ Score:21.2 G003+ Score:15.66 M080+ Score:15.25 G020+ Score:15.25 M011+ Score:9.71 G021+ Score:9.71 M115+ Score:6.63 N028+ Score:5.94 B090+ Score:5.94	The similarity score between two molecules is defined as the sum of Shannon entropy of ionic formulas shared by the molecules: $\textstyle - \sum_{p\in shared} \log(\mbox{frequency}(p))$ 代謝物間の類似度スコアは、それらのスペクトルで共有される（アノテートされた）イオン式のシャノン情報量の総和です。

Links

[show] Page list for each fragment

Pages Related to Peak C6H15O12P2:   F008+   Pages Related to Peak C6H13O11P2:   F008+   Pages Related to Peak C6H11O10P2:   F008+   Pages Related to Peak C6H10O7P:   F008+  G003+  G020+  M080+  T065+  M011+   Pages Related to Peak C6H8O6P:   F008+  G003+  T065+   Pages Related to Peak C6H7O3:   F008+  G020+  M080+  T065+  G051+   Pages Related to Peak C6H5O2:   A191+  F008+  N028+   Pages Related to Peak H4O4P:   D017+  D141+  F008+  G003+  G020+  M080+  P007+  P029+  P033+  S049+  T065+  G021+  G069+  M011+  P028+  P060+  P074+  P082+  G030+   Pages Related to Peak C5H5O:   B019+  D055+  F008+  F014+  R041+  G021+   Pages Related to Peak C4H7O:   F008+  A224+  B090+   Pages Related to Peak C4H3O:   M115+

Annotations

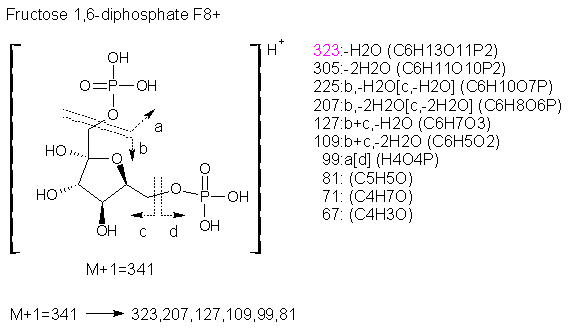

Precursor-Product Relationship

[show] About the PP Table (行列表示について)
The matrix is viewed columnwise. The topmost precursor ion in bold face produces the product ions beneath it. Each formula in matrix cells corresponds to the neutral loss. Blackout cells indicate products that cannot be derived, and orange cells indicate a structurally plausible link produced by cleaving a single chemical bond (in cases of ring-opening, two bonds).	行列は列方向に見ます。最上段太字の前駆イオン(precursor ion)が直下の生成イオン群(product ions)になると解釈します。 行列要素に書かれている組成式はニュートラルロスです。黒は前駆イオンから生成しえない関係、オレンジは分子構造における共有結合1本の切断（開環の場合は2本）で生じる関係を意味します。

[hide] KOX00241p	341 C6H15O12P2	323 C6H13O11P2	305 C6H11O10P2	225 C6H10O7P	207 C6H8O6P	127 C6H7O3	109 C6H5O2	99 H4O4P	81 C5H5O	71 C4H7O	67 C4H3O
341 C6H15O12P2
323 C6H13O11P2	H2O
305 C6H11O10P2	H4O2	H2O
225 C6H10O7P	H5O5P	H3O4P	HO3P
207 C6H8O6P	H7O6P	H5O5P	H3O4P	H2O
127 C6H7O3	H8O9P2	H6O8P2	H4O7P2	H3O4P	HO3P
109 C6H5O2	H10O10P2	H8O9P2	H6O8P2	H5O5P	H3O4P	H2O
99 H4O4P	C6H11O8P	C6H9O7P	C6H7O6P	C6H6O3	C6H4O2
81 C5H5O	CH10O11P2	CH8O10P2	CH6O9P2	CH5O6P	CH3O5P	CH2O2	CO
71 C4H7O	C2H8O11P2	C2H6O10P2	C2H4O9P2	C2H3O6P	C2HO5P	C2O2
67 C4H3O	C2H12O11P2	C2H10O10P2	C2H8O9P2	C2H7O6P	C2H5O5P	C2H4O2	C2H2O		CH2	H4
